MYONE

AUTOMATIC CHECKOUTS

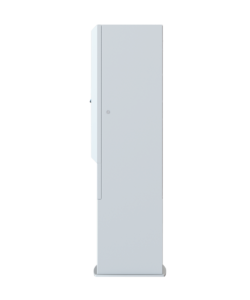

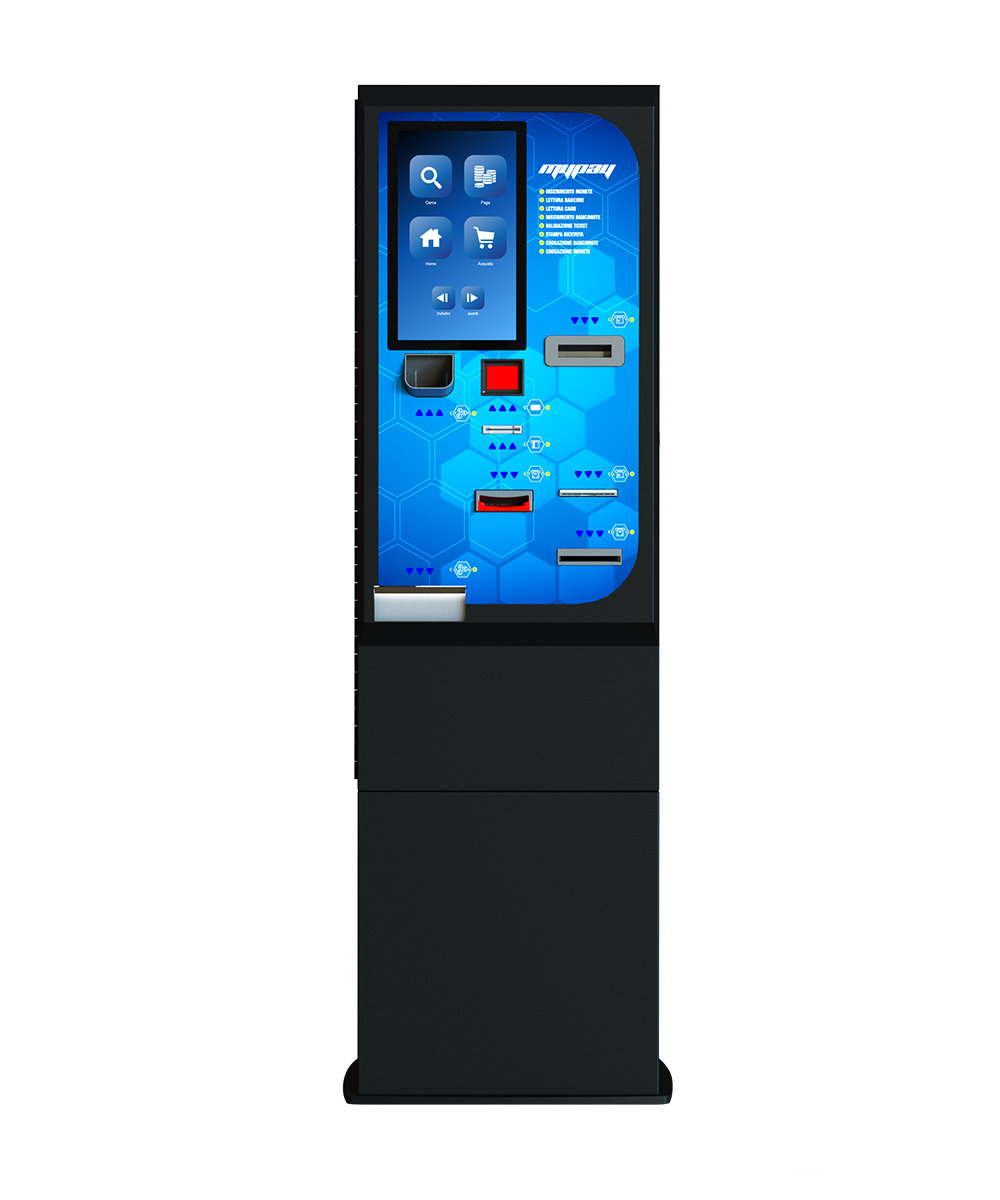

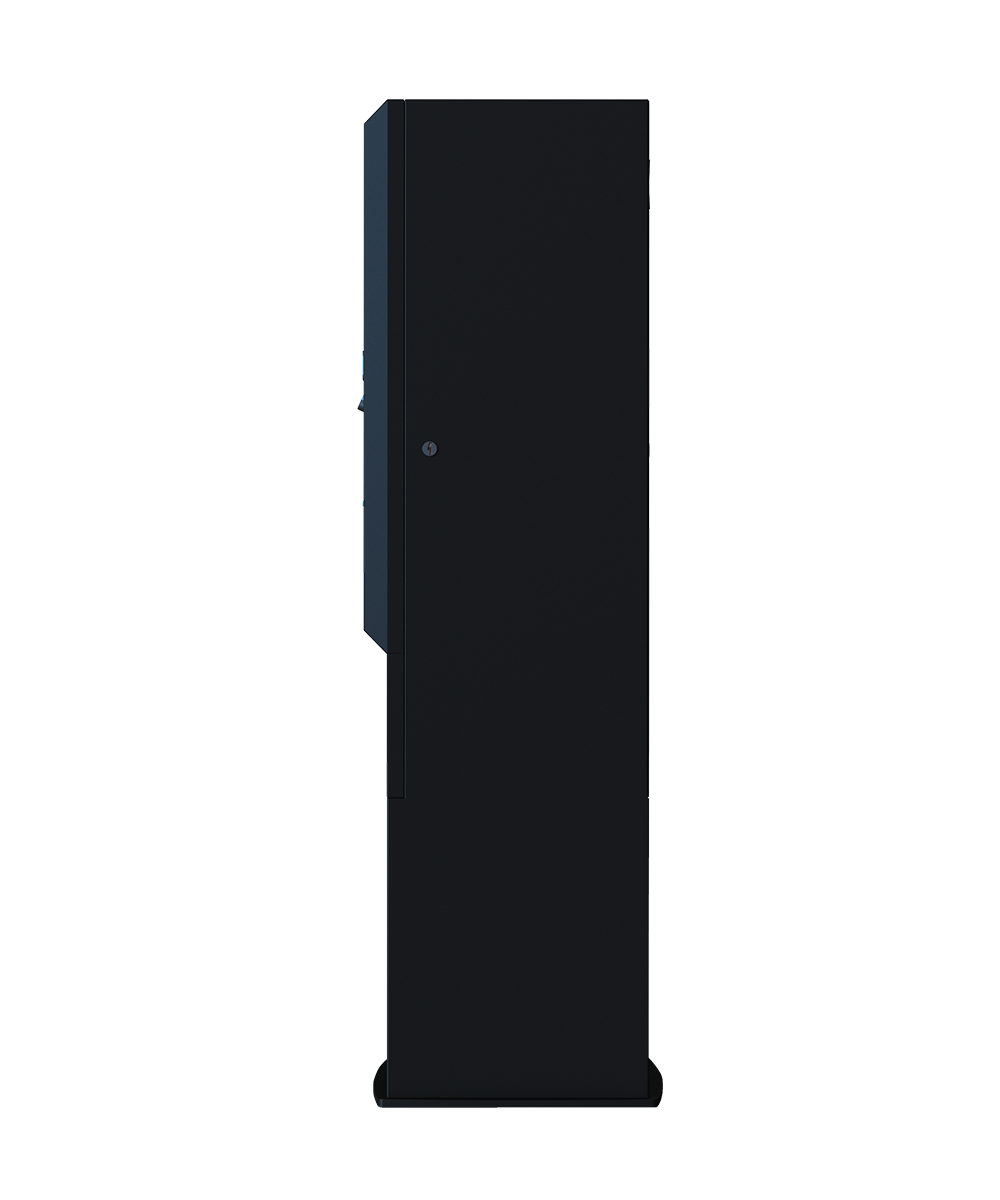

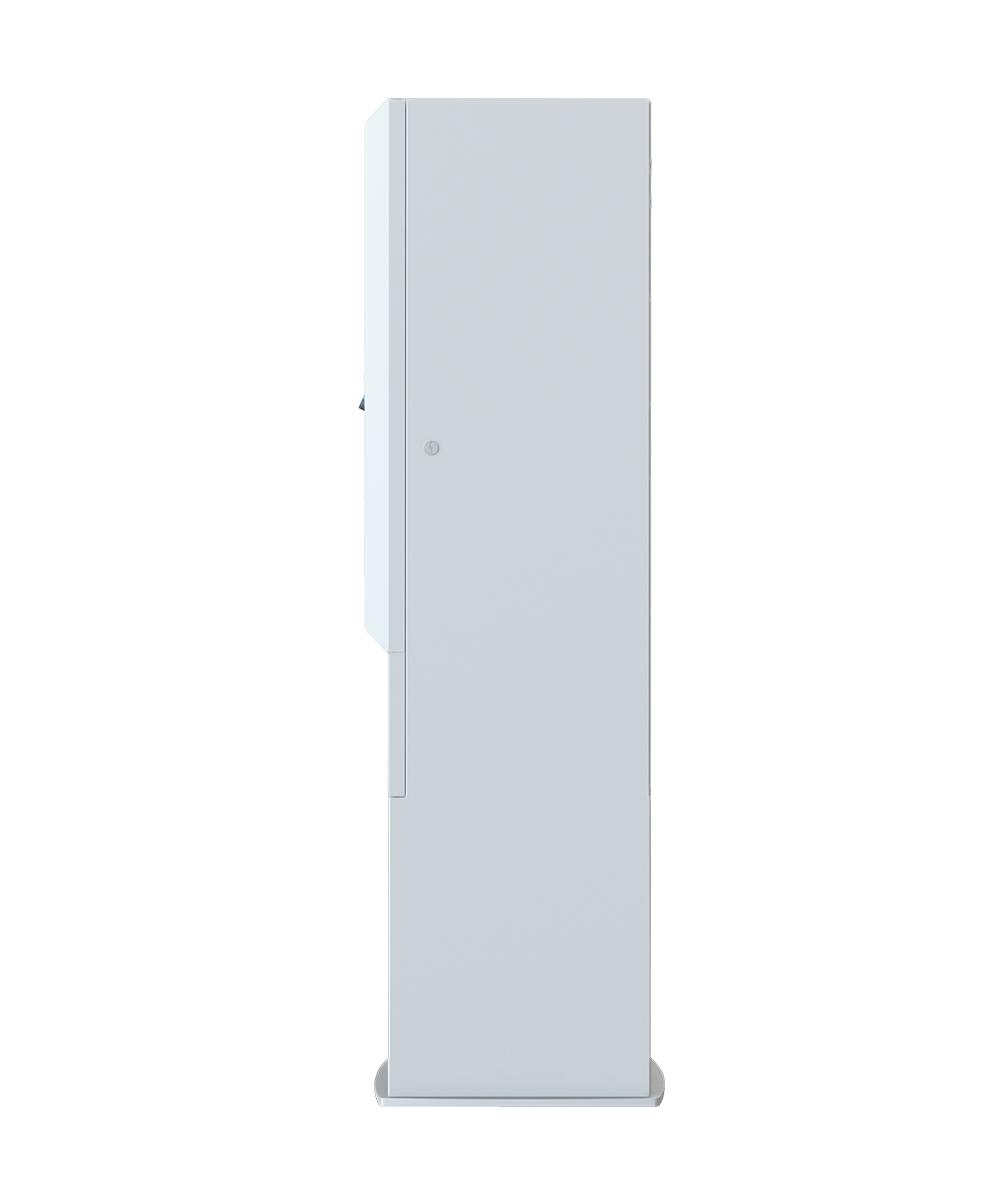

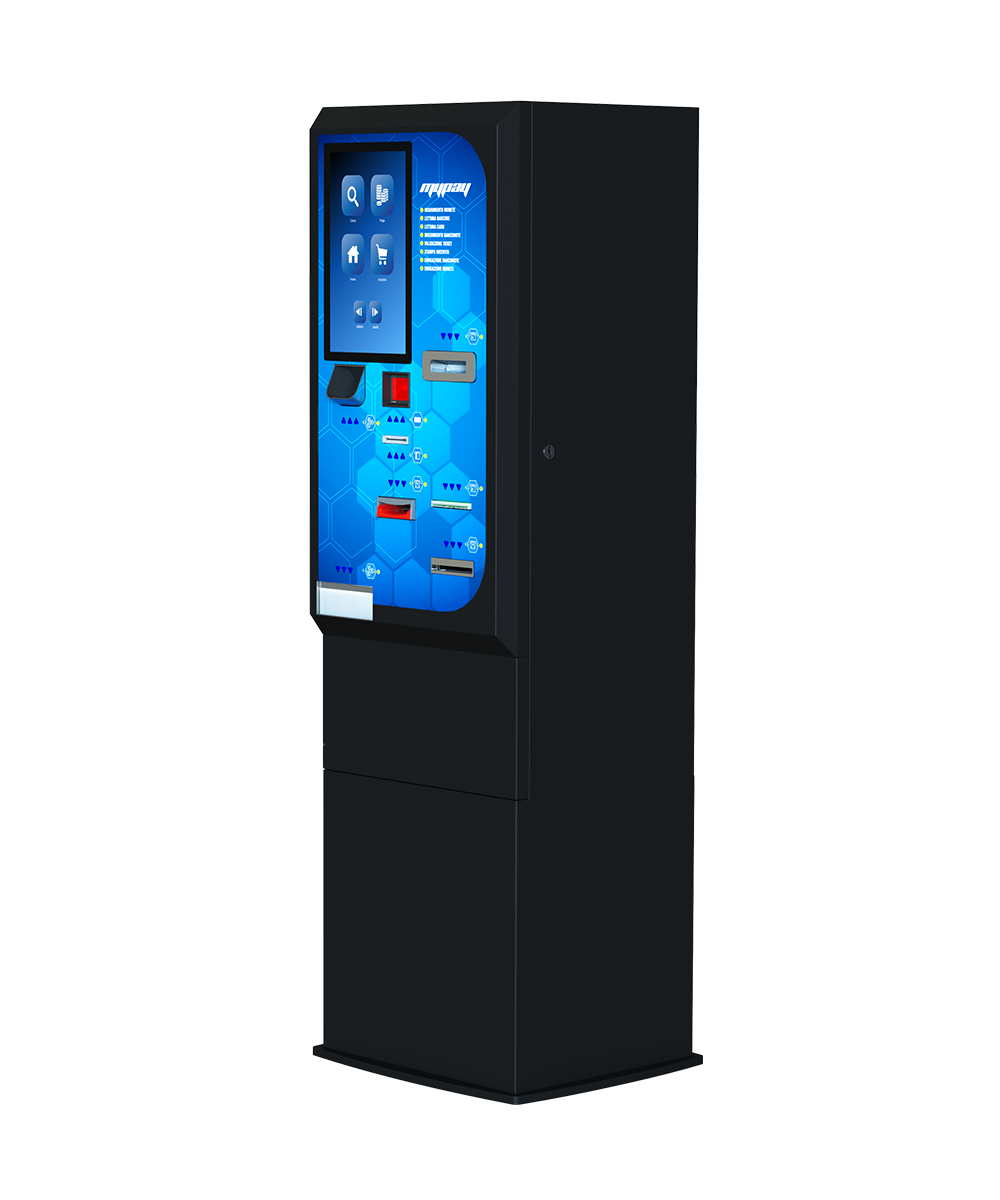

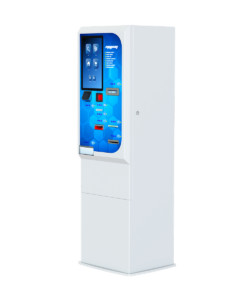

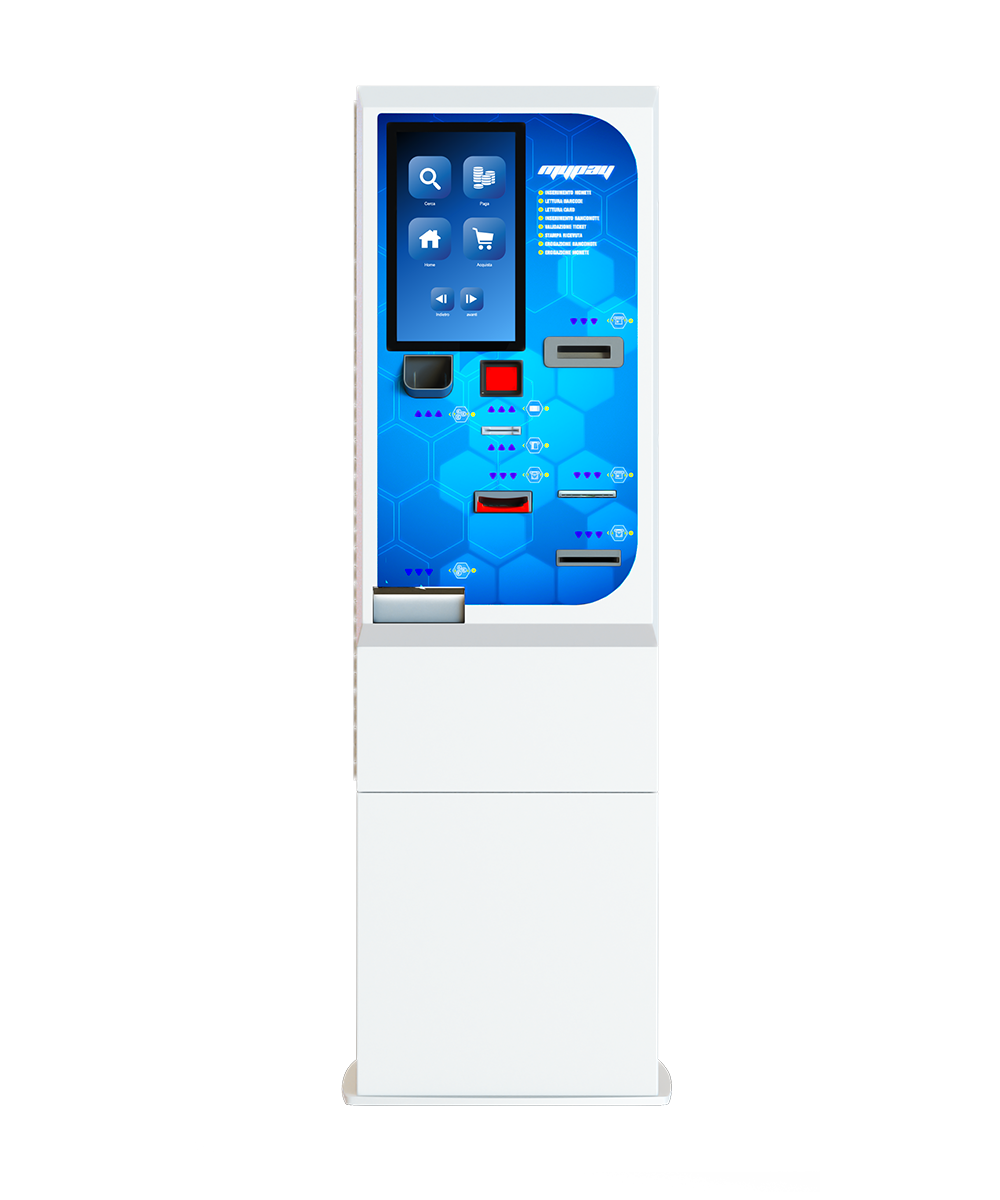

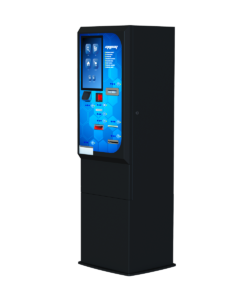

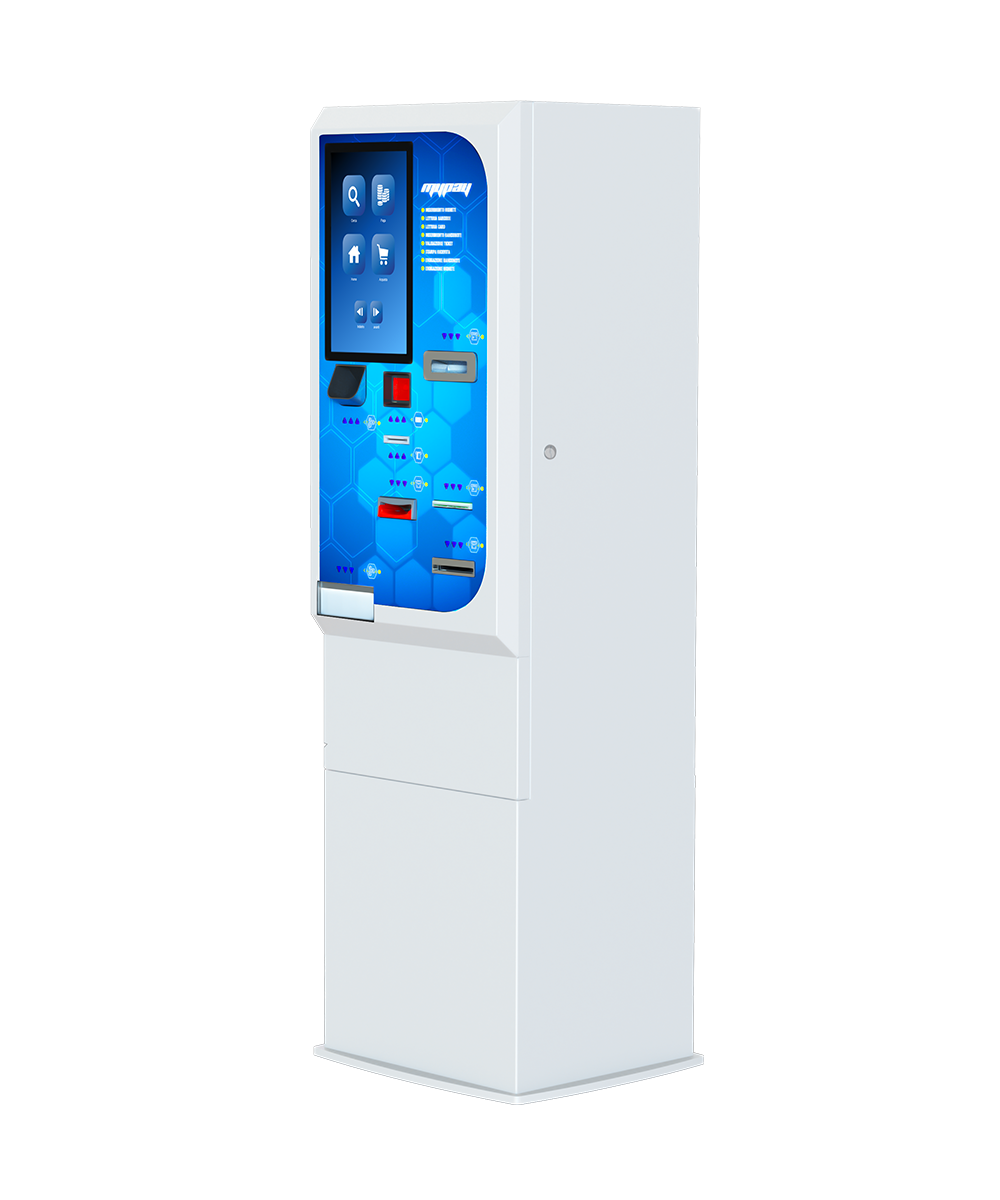

MYPAY V1

SCREEN: SINGLE SCREEN IN PORTRAIT MODE
1st DISPLAY: 15.6” PCAP TOUCH MONITOR (16:9, FULL HD, IPS, ANTIGLARE, 5mm)
HARDWARE PC: CORE i3/i5/i7 – RAM 4GB - SSD 120 GB 15.6” PCAP TOUCH MONITOR
OPERATING SYSTEM: WINDOWS – LINUX
BILL ACCEPTOR: ITL NV9/NV200 - JCM IPRO/UBA/VEGA – MEI SC ADVANCE
BILL DISPENSER: FUJITSU F53/F56 - PULOON LCDM/VCDM – GLORY MMR050/MULTIMECH
COIN + HOPPER: ITL SMART COIN SYSTEM/TWIN SMART COIN SYSTEM
TICKET PRINTER: CUSTOM TG2480/VKP80III – SANEI SK1-311 – EPSON
TICKET VALIDATOR: MYONE M82 (AIO: VALIDATOR+RETRACTER+SCANNER+PRINTER)
BARCODE SCANNER: NEWLAND FM3051/FM420/FM100
CARD READER: CREATOR CRT 288 – DDM HOPT+SCHULER 833 – HID OMNIKEY 5022CL
BILL RECYCLER (optl.): JCM IPRO RC – ITL SMART PAYOUT – MEI SCR ADVANCE
FINGERPRINT READER (optl.): VIRDI NSCAN-FM
DIMENSIONS: CM 168.5 x 56 x 50
WEIGHT: 125 KG - 135 KG

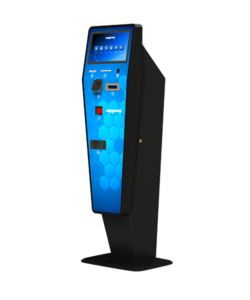

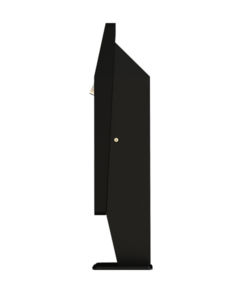

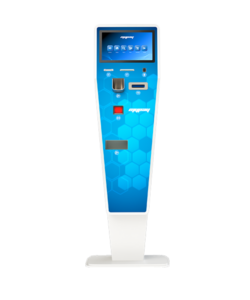

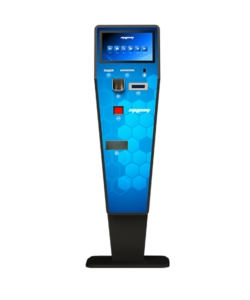

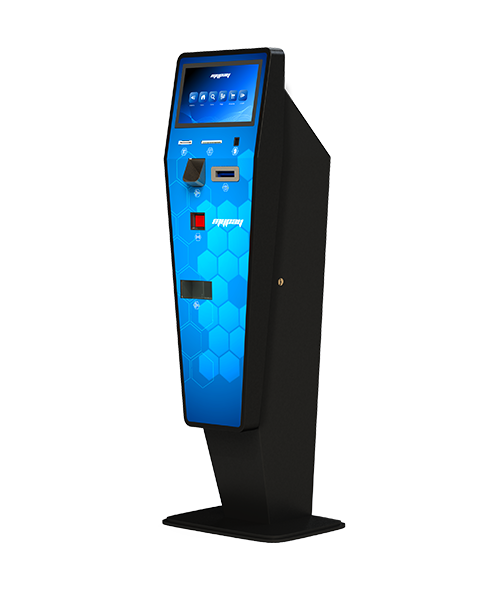

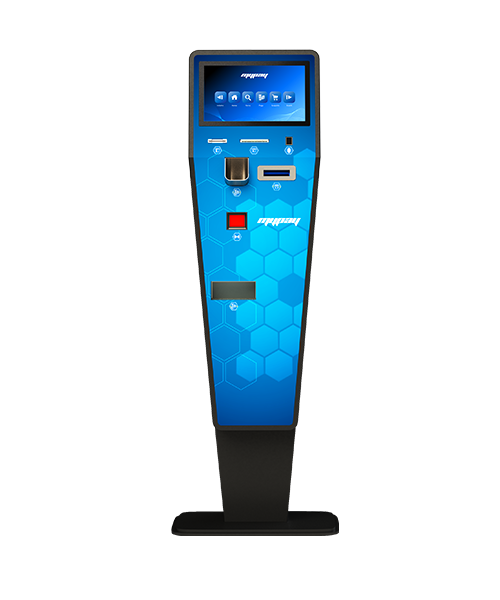

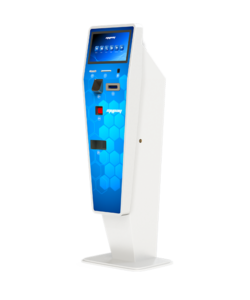

MYPAY V2

SCREEN: SINGLE SCREEN IN LANDSCAPE MODE
1st DISPLAY:15.6” PCAP TOUCH MONITOR (16:9, FULL HD, IPS, ANTIGLARE, 5mm)
HARDWARE PC: CORE i3/i5/i7 – RAM 4GB - SSD 120 GB
OPERATING SYSTEM: WINDOWS – LINUX
BILL RECYCLER: JCM IPRO RC – ITL SMART PAYOUT – MEI SCR ADVANCE
COIN + HOPPER: ITL SMART COIN SYSTEM
TICKET PRINTER: CUSTOM TG2480/VKP80III – SANEI SK1-311 – EPSON
BARCODE SCANNER: NEWLAND FM3051/FM420/FM100
CARD READER: CREATOR CRT 288 – DDM HOPT+SCHULER 833 – HID OMNIKEY 5022CL
DIMENSIONS: CM 165 x 58 x 40.5
WEIGHT: 65 KG - 75 KG

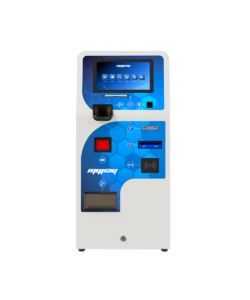

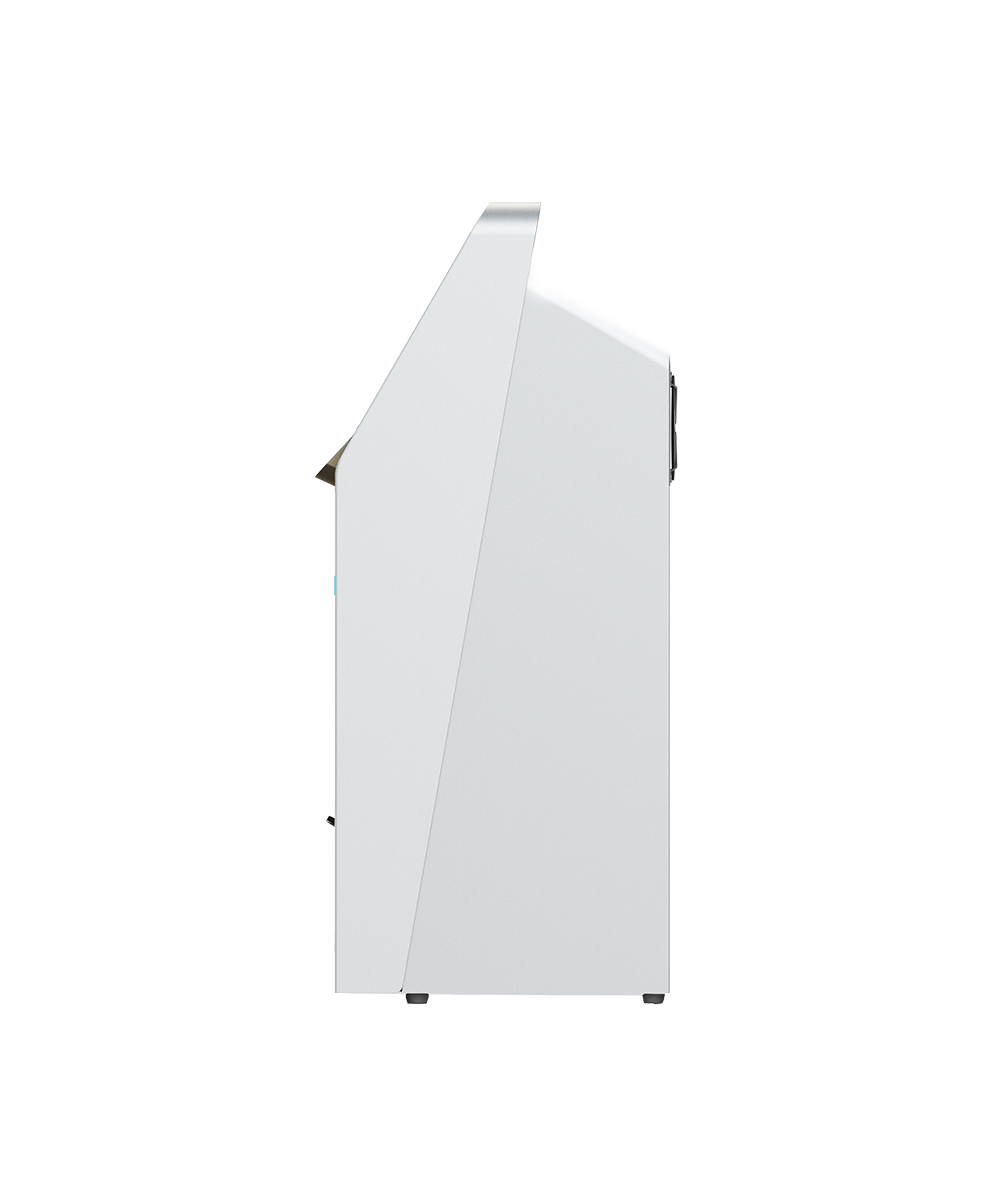

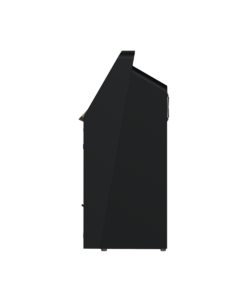

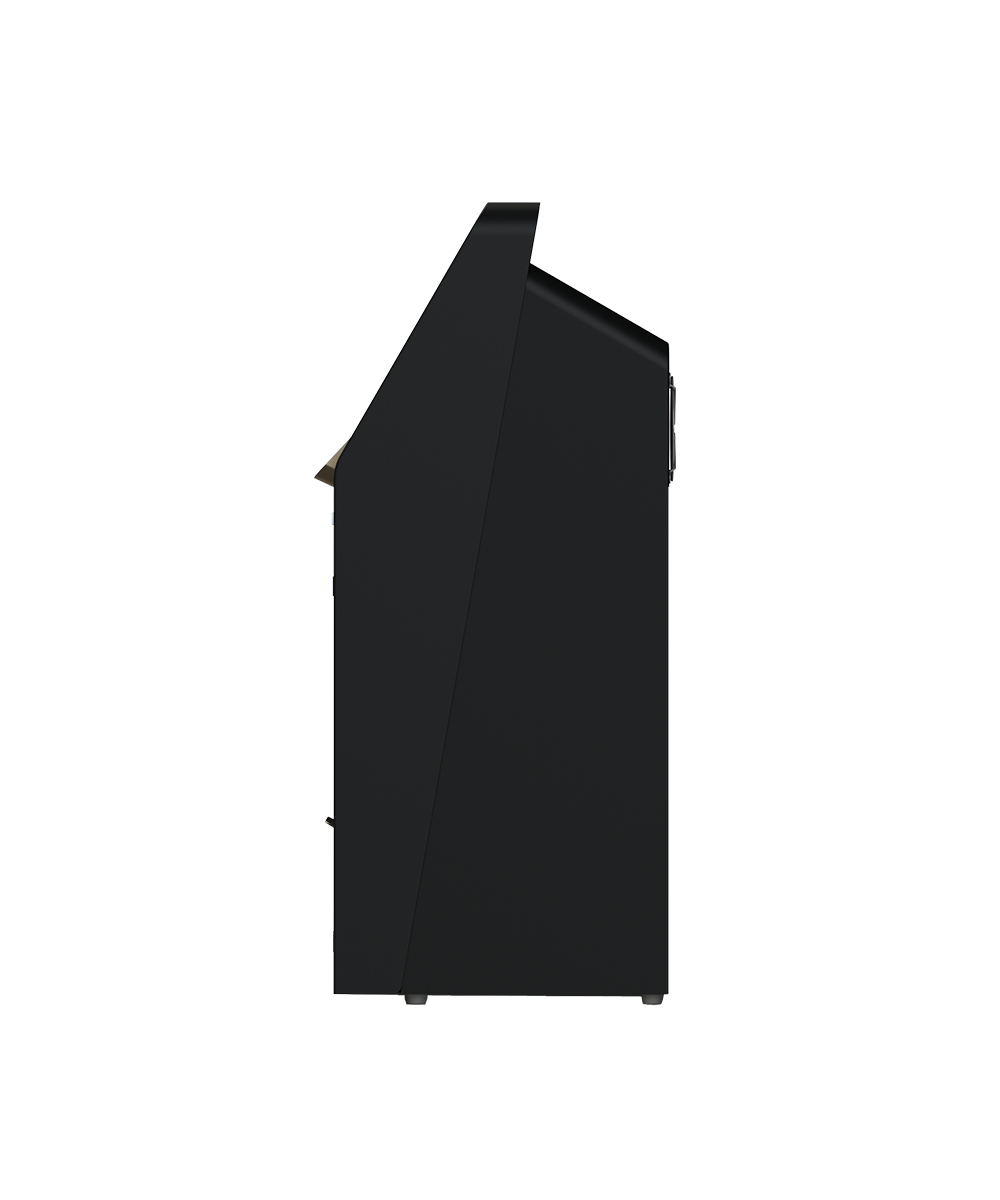

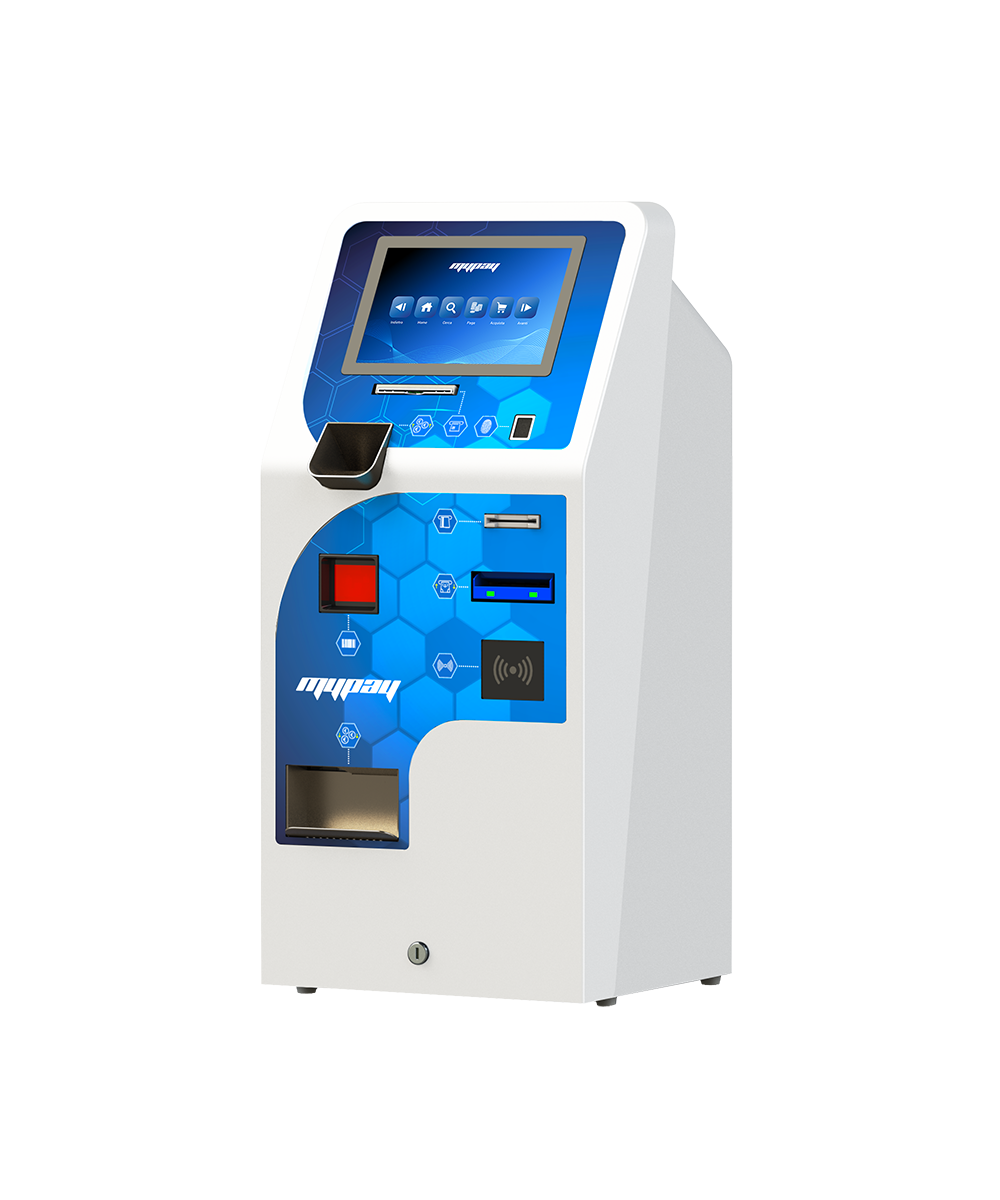

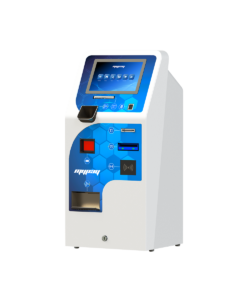

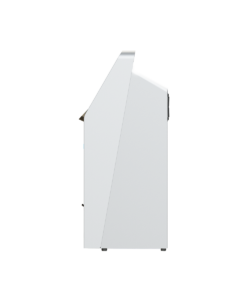

MYPAY V3

SCREEN: SINGLE SCREEN IN LANDSCAPE MODE
1st DISPLAY: 10.1” PCAP TOUCH MONITOR (16:9, FULL HD, IPS, ANTIGLARE, 5mm)
HARDWARE PC: CORE i3/i5/i7 – RAM 4GB - SSD 120 GB
OPERATING SYSTEM: WINDOWS – LINUX
BILL RECYCLER: JCM IPRO RC – MEI SCR ADVANCE
COIN + HOPPER: SMART COIN SYSTEM
TICKET PRINTER: CUSTOM TG2480/VKP80III – SANEI SK1-311 – EPSON
BARCODE SCANNER: NEWLAND FM3051/FM420/FM100
CARD READER: CREATOR CRT 288 – DDM HOPT+SCHULER 833 – HID OMNIKEY 5022CL
FINGERPRINT READER: VIRDI NSCAN-FM
DIMENSIONS: CM 83.5 x 38.5 x 35
WEIGHT: 45 KG - 55 KG

BRITT

SCREEN: DUAL SCREEN IN LANDSCAPE + PORTRAIT MODE
1st DISPLAY: 24” PCAP TOUCH MONITOR
2st DISPLAY: 32”/43” PCAP TOUCH MONITOR
HARDWARE PC: CORE i3/i5/i7 – RAM 4GB - SSD 120 GB
OPERATING SYSTEM: WINDOWS – LINUX
BILL ACCEPTOR: ITL NV9/NV10/NV200 - JCM IPRO/UBA/VEGA – MEI SC ADVANCE
COIN + HOPPER: ITL SMART COIN SYSTEM/TWIN SMART COIN SYSTEM
TICKET PRINTER: CUSTOM TG2480/VKP80III – SANEI SK1-311 – EPSON
BARCODE SCANNER: NEWLAND FM3051/FM420/FM100 - OPTICON
POS - CREDIT CARD READER: INGENICO ISELF SERIES (DUO/TRIO)/SELF (2000/5000)/CONTACTLESS POS
CARD READER (optional): CREATOR CRT 288 – DDM HOPT+SCHULER 833 – HID OMNIKEY 5022CL
BILL RECYCLER (optional): JCM IPRO RC – MEI SCR ADVANCE
COIN ACCEPTOR (optional): COMESTERO RM5 HD – NRI G13 - AZKOYEN AC6
DIMENSIONS: CM 218 x 68 x 59 (height x width x depth)
WEIGHT: 115 KG - 125 KG
